The Original Cold Socketing Compound

Designed specifically for the lifting, rigging, and load securement industries, modern production machinery from Strider~Resource is safe, fast and reliable. Strider~Resource invests in research and development to provide you with new and innovative products and processes.

Contact Strider-Resource today for modern machinery solutions suited to your business. Call us today at 905-859-3901 and inquire about our Stealth system solutions.

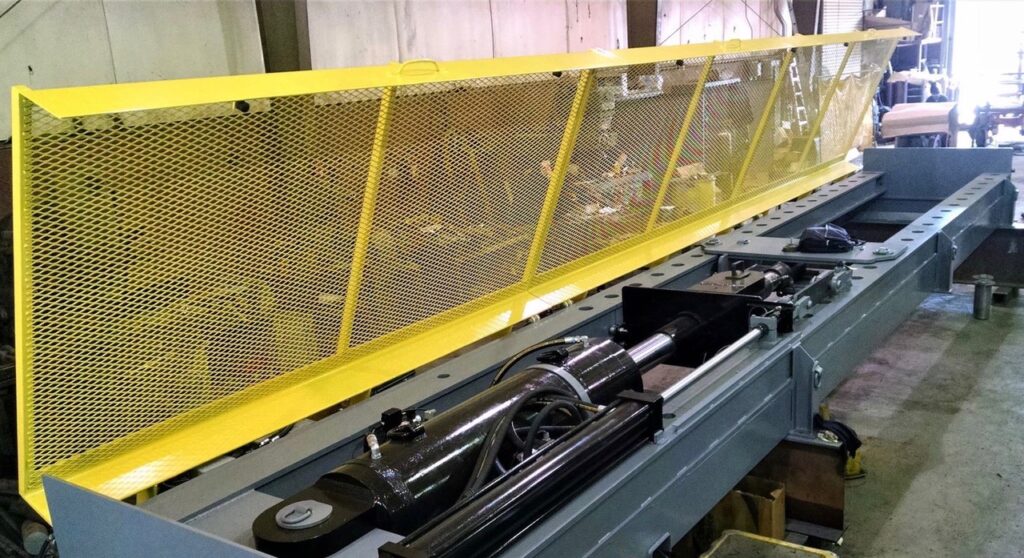

Featured Product: Modern Forward Compatible™ Test Machinery

Exceptionally accurate and technologically advanced test machinery.
Made in the USA with the highest quality components and workmanship.
Engineered to be easily adaptable for future equipment and software upgrades. • Optimum force controllability. Advanced data acquisition.
Prompt professional worldwide technical support and calibration services.
Quality wire rope grips and wireless load cells.

Roundsling Machines

Innovation in roundsling machines from Strider-Resource

Strider-Resource has the experience and innovation to create new solutions in roundsling machines. Strider-Resource has the right machines for your business, allowing you to produce individual custom slings according to your customers requirements.

RSM PRO – Modern High Speed Production Roundsling System

The RSM PRO is the combination of two machines. The Tube Contraction Machine (TCM) bunches the seamless covers quickly and easily onto metal trumpets. The Roundsling Machine (RSM) feeds the load bearing yarn into the covers at high speeds.

The TCM installs a wide range of seamless cover width and thicknesses onto assembly tubes, quickly and efficiently without damaging the cover material. It also processes a diverse selection of covers compatible with the range of sling capacities and lengths produced on the RSM. This provides time and cost savings over preparing covers manually. Information on the TCM is also available with metric specifications.

The RSM can run multiple roundslings at the same time. It effectively manages sling lengths up to 60 feet. Information on the RSM Pro is also available with metric specifications.

RSM HC – Modern High Capacity Roundsling Machinery

Available on Spec. 100+ ft., Multi run. TCM compatible.

RSM X – Top Secret

Strider-Resource would be happy to provide you with information and pricing for your specific needs with respect to the RSM PRO, RSM HC, RSM X, and Roundsling Machines. Please contact us today at 905-859-3901.

Annealing Machines

For more information on annealing machines, please contact us today at 905-859-3901.

ReelPower

Modern Reeling Machines

Heavy Duty Coiling Machines

Light Duty Coiling Machines

Take Up and Pay Out Machines

Cut to Length Machines

For more information please contact ReelPower here.

Heavy Duty Sewing Machines

The future of industrial sewing is here

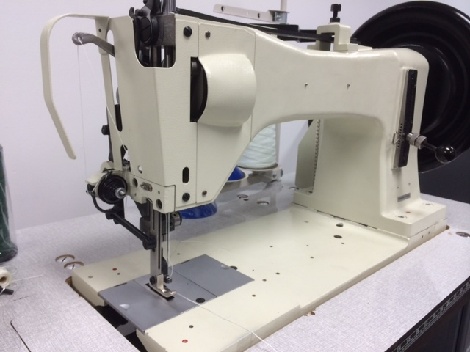

Service Sling High Lift 733R

This extra heavy duty machine includes a long arm, with both upper and lower feeds, also equipped with semi-rotary large capacity shuttle hook. Which is suitable for sewing extra heavy weight material, such as safety and logging belts, luggage, cargo slings, buffing wheels, harnesses, construction barriers, parachutes, balloons and book binding.

Features

With upper lower feed, the machine can sew accurately and easily several sheets of heavy weight materials piled together,

The lifting amount of presser foot is as high as 26mm, suitable for stitching the extra heavy-weight materials. 32mm high presser foot lift also available on request.

The machine is provided with a free space measuring 413mm wide. It allows the operator to handle a large sewing product with ease.

Applied the semi-rotary large shuttle hook and bobbin, could reduce the frequency of changing the bobbin thread and increasing the sewing efficiency.

SPECIFICATION

SPECIFICATION
Max. Sewing Speed	700 S.P.M	Bed Size	654 x 258mm
Max. Stitch Length	15mm	Needle	Schmetz 1000 (#250)
Lift of the Presser Foot	26-32mm	Thread	#0 – #00
Alternating vertical movement	5-7mm	Motor	Clutch motor, 3 PHase, 1HP, 4P
Needle Bar Stroke	66mm (2.6″)	N.W / G.W.	126 / 141 KGS
Working Space	413mm (26-1/4″)	Meas.	0.28 CBM

Singer® SL 7 Class - Extra Heavy Duty Sewing Machine

This heavy duty sewing machine with high lift and reverse boasts a 3/4 Horse Power WMC brand motor, significantly improving longevity and durability over the industry standard light duty 1/2 HP Motor. The Machines are fully inspected, including the take up screw holes and lifting presser bar screw holes. They are then completely stripped and thoroughly rebuilt with new timing cams, balance wheel, shuttles, races, top cam shafts, hardened needle bars, 3/4 HP WMC Motor, and paint. Custom built brackets hold the 7-33 Singer® Head onto a 2” thick table. The heavier table helps to stabilize the machine and is specifically fit to match the pull length of the reverse mechanism. Our heavy duty sewing machines are designed and manufactured to meet the unique requirements of synthetic web and roundsling manufacturers. Strider guarantees quality.

3/4” Lift	7/8” Sewing Capacity
Extra Large Bobbin	1-1/4” diameter x 1-3/4” length
Accepts 6 Chord	Up to size 554 Nylon Thread
Power Supply	110V, Single Phase, 60HTz
Dimensions	5’ long x 3’ wide x 4’ high
Weight	367 lbs. Uncrated

Ready to Experience a Better  Way to Lift?

Find out more about our products – and download our product guide
